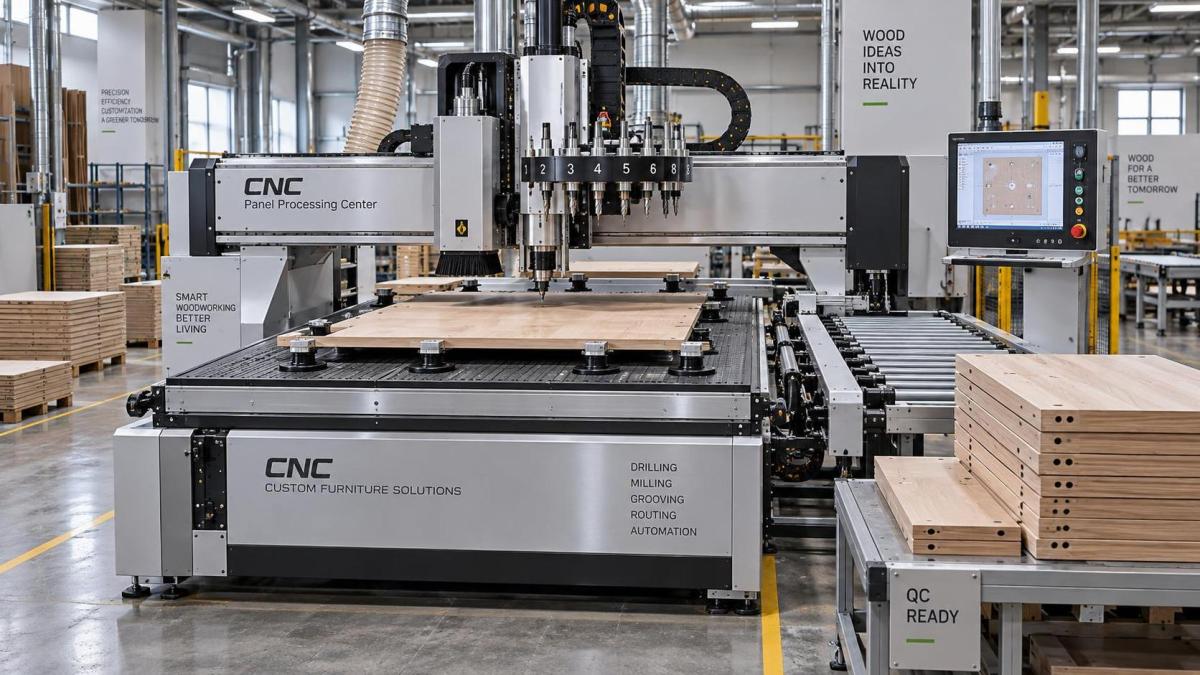

A custom woodworking machine quote should be read as a proposed operating boundary, not as a list of purchased parts. The quoted price matters, but it cannot be compared meaningfully until the engineering assumptions behind it are visible. Two proposals can describe the same panel size, spindle count, or feeding speed while covering very different material conditions, automation limits, tooling responsibilities, installation work, and acceptance criteria.
Start by asking a simple question: what production result is the supplier actually committing to deliver? A machine description such as “automatic drilling and routing line” is too broad for a technical comparison. The useful document connects the intended workpiece, machining sequence, output condition, and performance expectation to a defined machine configuration. When those links are missing, the quotation leaves room for incompatible interpretations after the order is placed.
The scope should describe the material before it enters the machine, the operations performed inside it, and the state in which it leaves. For panel processing, this includes board material, thickness range, length and width limits, surface condition, reference edges, hole patterns, grooves, routing profiles, and any required labeling or sorting. For solid wood processing, grain direction, moisture variation, stock straightness, knots, warped pieces, and clamping requirements may affect the design far more than nominal dimensions alone.
A quoted working range is often misunderstood. A machine capable of accepting a large panel does not necessarily maintain the same accuracy, cycle time, or clamping stability across every size within that range. A narrow part may need auxiliary supports. A thin, flexible board can require a different vacuum arrangement from a thick cabinet side. Long components may require infeed and outfeed support that is absent from the base machine price.
Look for the reference datum used during machining. If hole positions, edge profiles, or grooves are referenced from a pushed edge, the quality of that edge becomes part of the process assumption. If a panel is located by vacuum stops, mechanical pins, or a camera-based reference system, the quote should make clear which surfaces are used for positioning and what happens when a board is bowed or its edge is not square. A precision machine cannot compensate indefinitely for an undefined reference condition.
The machining route deserves the same attention. A quotation may state that a machine drills, trims, or routes, but the sequence determines whether the result is workable. Drilling before routing can be correct when all hole coordinates use an initial panel datum. Routing first may be necessary when the final edge is the true reference. Neither approach is automatically superior; the correct arrangement depends on part geometry, nesting method, tolerances, and whether later stations need to recognize the machined edge.
Many project gaps arise from a function that seems inherent in a machine name but is not listed as supplied equipment. “Automatic loading” might mean a lift table and vacuum lifter, or it might only mean that the machine accepts parts from an existing conveyor. “Tool changing” may include a magazine but exclude toolholders, collets, cutting tools, presetting equipment, and the tool data needed to run a program. “Dust collection connection” can mean only a duct port, without fans, ductwork, blast gates, electrical control, or airflow verification.
Read every inclusion and exclusion as a boundary between the machine supplier and the site. The boundary should cover more than major assemblies. It should identify control cabinet responsibilities, cables between machines, pneumatic piping, lubrication supplies, foundations, leveling materials, unloading equipment, safety guarding at interfaces, and workpiece transfer devices. A line can be mechanically complete yet remain unable to run because a small interface item was assumed to be supplied by someone else.

Technical tables often contain accurate values that still fail to define the delivered result. Feed speed, spindle speed, positioning accuracy, and installed power are useful only when tied to a workpiece and machining condition. A high traverse speed describes axis movement between cuts; it does not prove a high cutting rate in dense plywood, laminated board, hardwood, or abrasive composite panels. Likewise, spindle power does not reveal available torque at the selected speed, the cutter diameter, or the depth and width of cut.
Cycle-time claims deserve a breakdown. A realistic estimate separates loading, scanning or positioning, clamping, machining, tool changes, transfer, unloading, and any wait time created by downstream equipment. A machine may complete its internal cycle quickly while the line produces fewer finished parts because unloading is manual or an edge-banding station cannot accept parts at the same rate. The quoted capacity should therefore identify whether it refers to machine cycle, theoretical throughput, or finished output under an agreed part mix.
Accuracy should be treated in the same way. A positioning specification does not automatically equal hole-to-edge accuracy on a finished panel. The finished result is influenced by board movement, fixture repeatability, tool runout, thermal conditions, cutter wear, reference-edge quality, and measurement method. A quote that promises a tolerance should state which feature is measured, on what material, after which operation, and with which datum. Without this detail, one party may measure center-to-center hole distance while the other evaluates hole position relative to a trimmed edge.
Lead time is reliable only when the design inputs are sufficiently fixed. A statement such as “delivery in a specified number of weeks after deposit” should be read together with the conditions that start the production clock. If drawings, sample workpieces, software interfaces, voltage details, or tooling choices remain open, the nominal delivery period may describe factory assembly time rather than the full project period.
Custom work commonly moves through several gates: confirmation of technical specifications, detailed layout or drawings, component procurement, fabrication, assembly, internal testing, pre-shipment acceptance, packing, transport, installation, commissioning, and final acceptance. Each gate can reveal an issue that changes the next one. A revised panel size may alter the vacuum fixture. A late decision to add a barcode reader can affect the electrical enclosure, software logic, and conveyor spacing. These are engineering changes, not minor administrative edits.
The quote should identify the point at which changes become chargeable or extend delivery. It should also state how changes are documented. An email discussion is not a sufficient substitute for a revised drawing, approved bill of equipment, or updated program specification. Where a custom machine interfaces with existing equipment, the dimensional interface, handoff height, signal exchange, guarding division, and emergency-stop logic need approval before fabrication. Leaving them until installation transfers design uncertainty to the most expensive phase of the project.
Transport timing is another separate issue. Factory completion, readiness for shipment, vessel departure, arrival at port, inland delivery, and site availability are different dates. Packaging dimensions and machine section weights should be available early enough to confirm unloading equipment, access routes, doorway clearances, floor loading, and assembly space. A machine that fits through a building entrance in a dismantled condition may still require additional assembly time and lifting arrangements that were not included in the initial installation scope.
A factory acceptance test should use representative parts rather than a convenient demonstration piece. The sample should reflect the expected board construction, thickness, finish sensitivity, machining features, and production sequence. A simple rectangular panel with a few holes will not reveal problems that appear on a narrow rail, a large cabinet side, a laminated board prone to chipping, or a component requiring several tool changes.
The test protocol should state what is supplied for testing, who approves programs, how many pieces are run, which dimensions are inspected, and how nonconforming results are handled. It should distinguish first-piece adjustment from repeatability after settings are established. One correctly machined part can be achieved through manual intervention; repeated compliant parts provide stronger evidence that locating, clamping, machining, and control logic are working together.
Surface quality should not be left as a visual impression when it matters to the intended product. Edge chipping, breakout at through-holes, burn marks, fiber tear-out, laminate damage, and tool marks have different causes. Some relate to cutter selection and feed rate, while others indicate poor backing support, inadequate hold-down, wrong cutting direction, or weak extraction. The acceptance document does not need to prescribe every remedy, but it should define the acceptable result and the material condition used to judge it.
Software acceptance needs equal care. Confirm the source of production data, file formats, naming rules, part orientation, error handling, alarm language, backup method, and the ability to restore a known working configuration. If a machine receives data from an upstream design or production system, test the actual handoff rather than a manually prepared demonstration file. A line can pass mechanical testing while still being unsuitable for routine production because part identifiers, machining coordinates, or routing instructions are interpreted differently at the interface.
A lower quote may reflect a genuinely simpler design, but it may also place more work outside the supplier’s scope. Comparing totals alone hides this difference. Build the comparison around the delivered production condition: machine hardware, tooling, automation, software, utilities, site work, training, test materials, documentation, spare parts, and commissioning support. The purpose is not to force identical proposals; it is to reveal where their boundaries differ.
Pay particular attention to allowances expressed in broad terms such as “standard configuration,” “basic training,” or “remote support.” These phrases need measurable content. Basic training could mean a short functional handover or a structured session covering setup, tool offsets, alarm recovery, lubrication, program loading, and daily inspection. Remote support depends on network access, control-system permissions, language requirements, and the ability of site personnel to perform the requested checks safely.
Recommended spare parts should be separated into wear items, critical recovery items, and optional stock. Bearings, belts, sensors, pneumatic components, collets, vacuum seals, and electrical devices do not have the same replacement urgency. The useful question is whether a failed item would stop production and whether it can be identified and replaced without specialized alignment or calibration. A spare-parts list with part numbers, quantities, and applicability is more useful than a generic statement that consumables are available.
The strongest quotation is not necessarily the longest document. It is the one that makes the production promise, engineering boundaries, timing assumptions, and acceptance method clear enough that later discussions can be resolved against agreed evidence. Where uncertainty remains, record it as an open technical item before approval. Unresolved questions do not disappear after the purchase order; they usually return as delays, change requests, or arguments over what the machine was expected to do.
